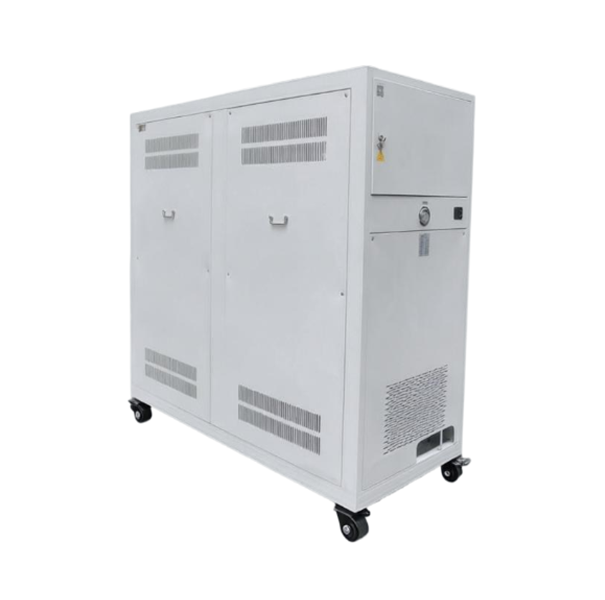

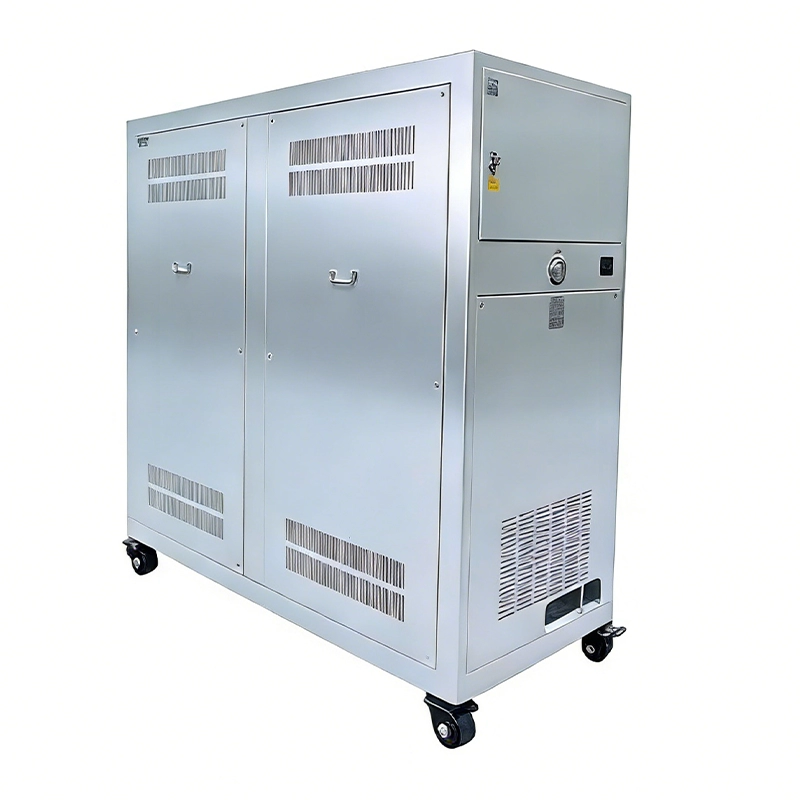

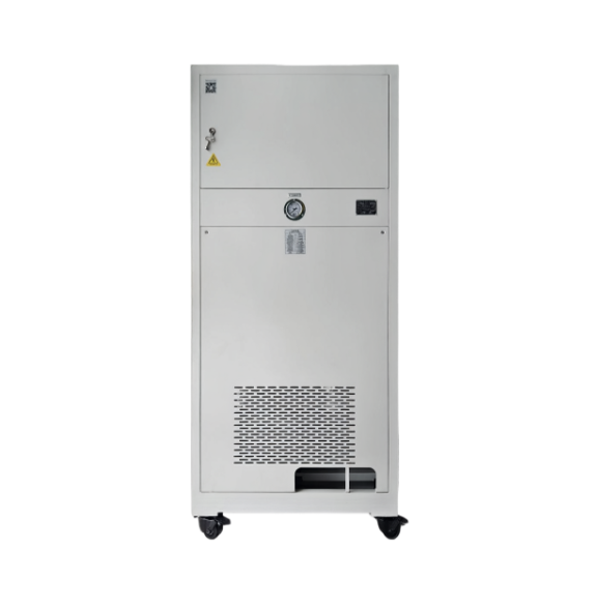

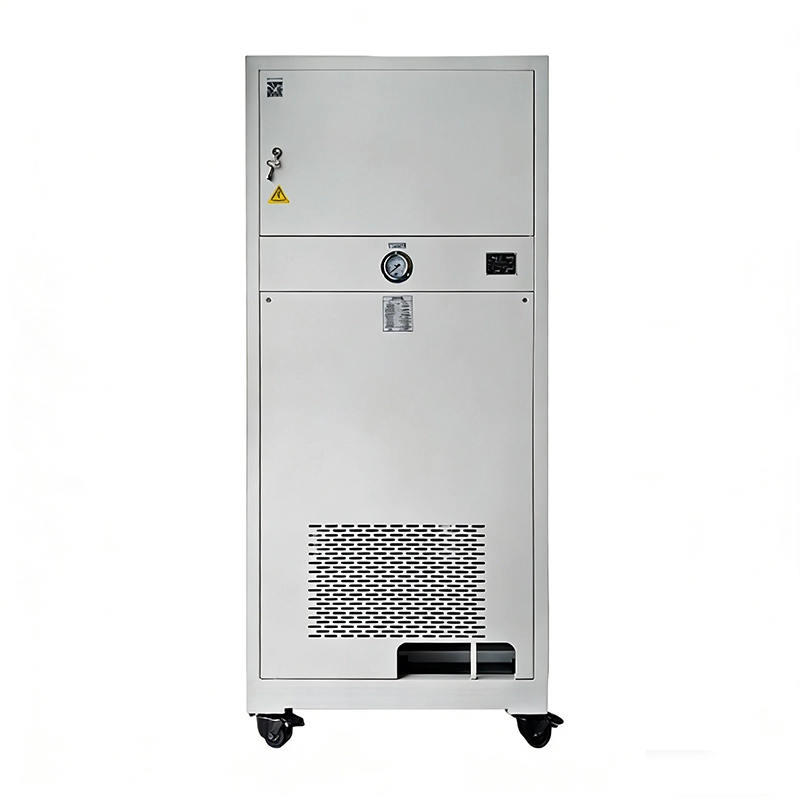

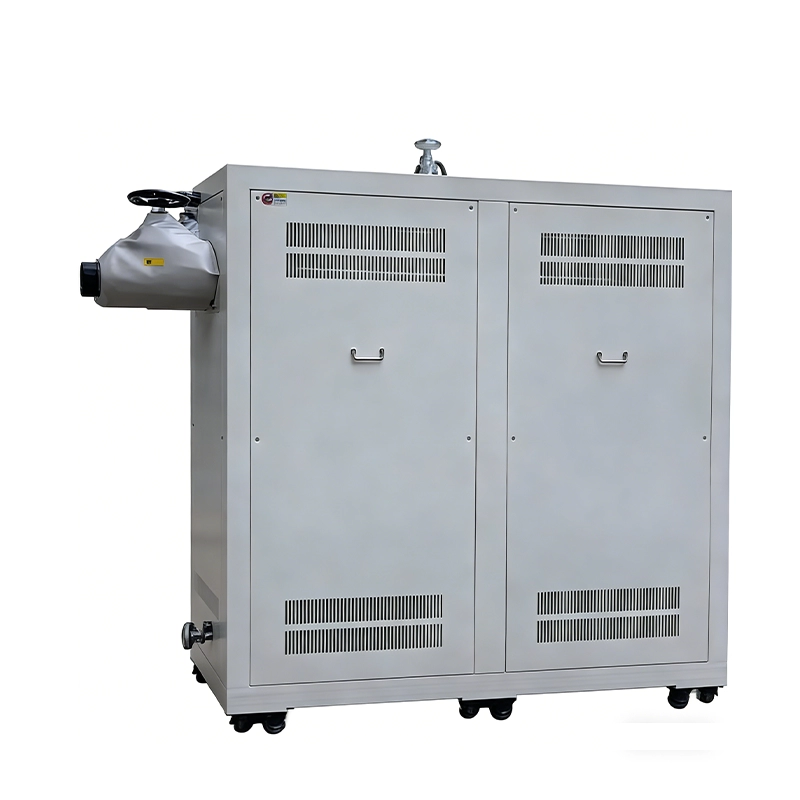

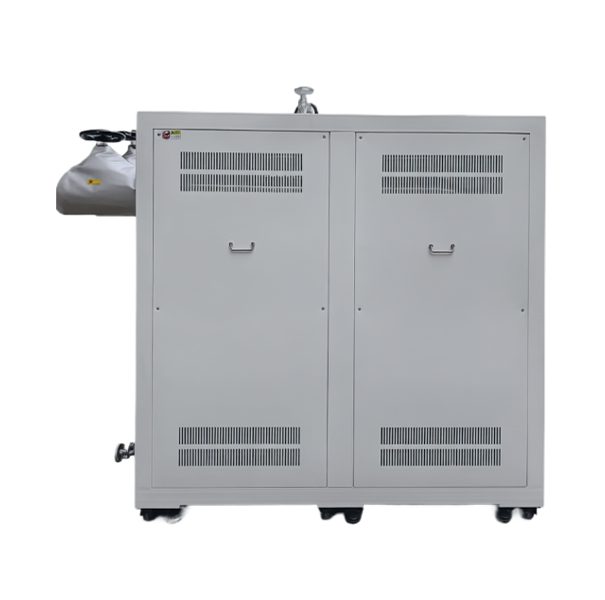

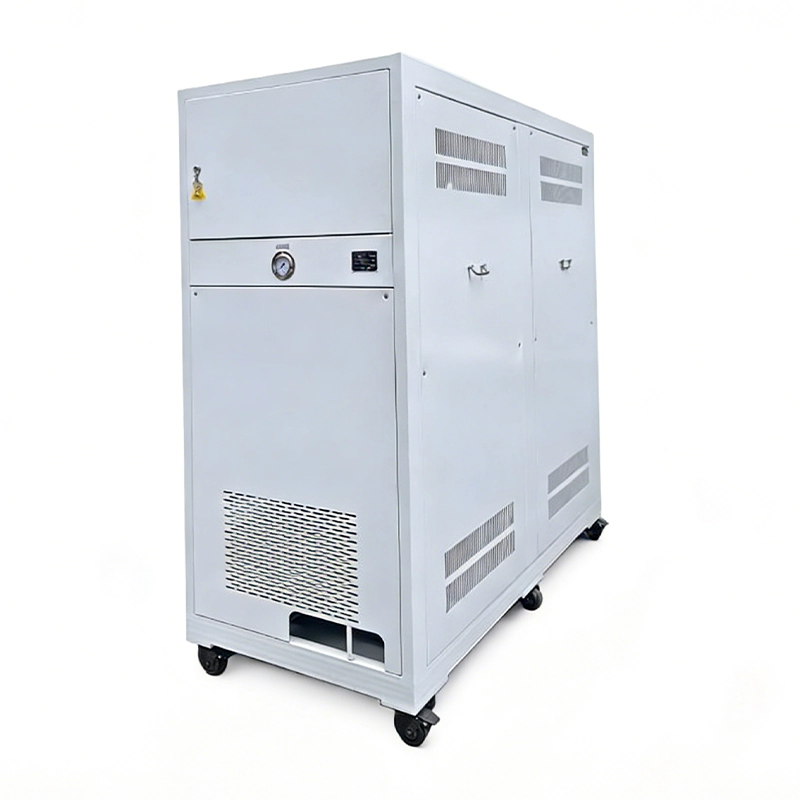

YOHT-150CL-90K Secondary Heating System

Second-cycle technology | High efficiency and energy conservation | Precise temperature control | Stable and reliable

get a quote

If you have any questions about our product range or services, please fill out the contact form below and we will be in touch promptly

* Please enter message information

Worldwide delivery capable

Product Brief

Category	Description
Model Features	- Adopts secondary circulation technology - High-efficiency and energy-saving design - Precise temperature control - Stable and reliable operation - Intelligent control system - Multiple safety protections
Application Scope	- Industrial production process temperature control - High-precision equipment temperature control - Complex process temperature control - High-temperature heating processes
Technical Parameters	- Temperature Control Range: 0~300°C - Temperature Control Accuracy: ±0.5°C - Heating Power: 90KW - Circulation Flow: Customizable according to requirements - Power Supply: 380V/50Hz

Product Parameter List

Item	Unit	YOTB-75	YOTB-100	YOTB-150
Temp Control Range	°C	Inlet water temp +45~300 (All models)
Temp Control Accuracy	°C	PID ±1 (All models)
Power Supply	—	AC 3P 380V (3PHASE+eARTH) (All models)
Heat Transfer Medium	—	Thermal oil (All models)
Cooling Method	—	Indirect cooling (All models)
Expansion Tank	L	(100)	(150)	(250)
Heating Capacity	kw	60/75	80/100	100/150
Pump Power	kw	5.5	7.5	11.5
Pump Flow	L/min	125(18)	25(30)	45(12.5)
Pump Pressure	kg/cm²	5.0(4.0)	5.0(4.8)	4.0(8.0)
Max. Power Consumption	kw	82.5	132	162
Alarm Function	—	Phase loss / oil shortage / over temperature / overload / heating abnormality alarm (All models)
Cooling Water Pipe	inch	1/2 (All models)
Circulating Media Piping	inch	1-1/2	2	2.5
Size (L×W×H)	mm	1570×550×1200	—	1570×600×1400

*Note: This parameter table represents the standard machine parameters. For non-standard parameters and functions, please communicate with us for further information.
