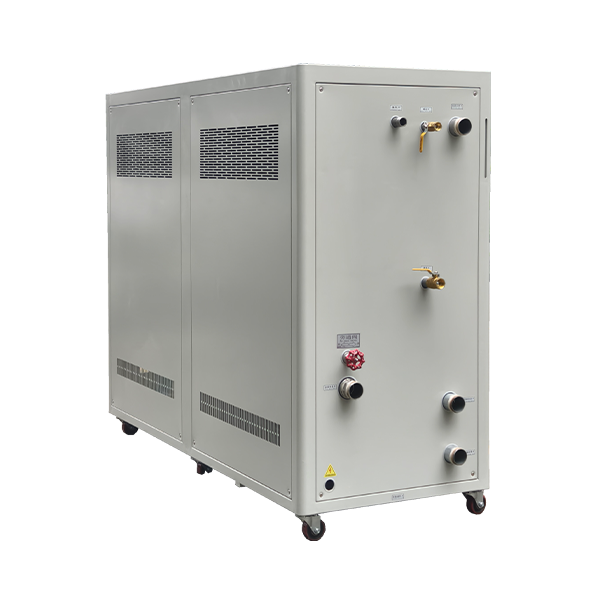

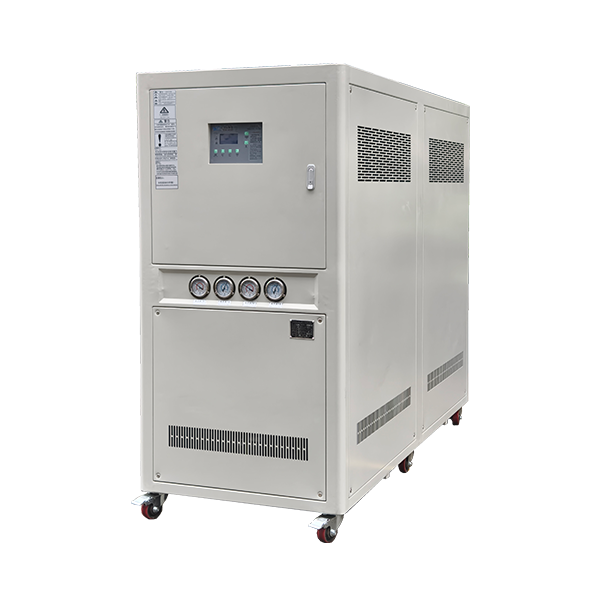

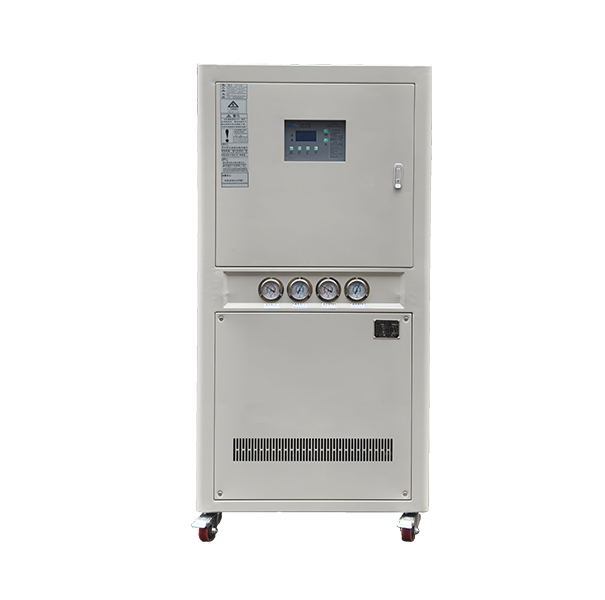

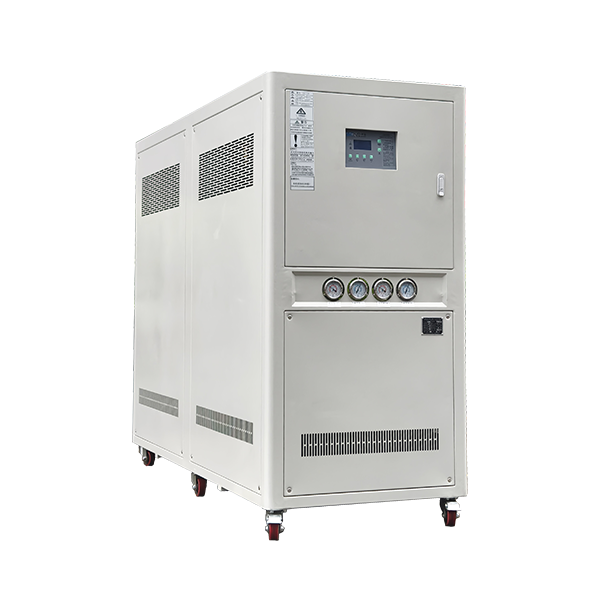

YC-10W Water-cooled Chiller

Industrial grade | High power | Stable and reliable

Quantity

Estimated Delivery:Jan 28 - Feb 01
Free Shipping & Returns: On all orders over $75

Product description

Shipping & Return

Product Brief

Category	Specification
Product Model	YC-10W
Cooling Method	Air-cooled
Refrigerating Capacity	10KW
Power Supply	3-phase 380V 50Hz
Temperature Control Range	5~35°C
Temperature Control Accuracy	±1°C
Application Scope	Suitable for industrial cooling needs such as large injection molding machines, chemical equipment, and laser equipment

Product Parameter List

Item	Unit	YC-03A	YC-05A	YC-08A	YC-10A	YC-20A	YC-30A	YC-50A
Temp Control Range	°C	Normal temperature; customizable below 0°C (All models)
Temp Control Accuracy	°C	PID ±1 (All models)
Power Supply	—	AC 3P 380V (All models)
Medium	—	Water/R22 (All models)
Refrigerating Capacity	Kcal/h	8251/9654	13690/16018	21375/25009	27370/32023	57748/67565	85303/99805	132359/154960
Cooling Power	kw	10/11	16/19	25/29	32/37	67/78	99/116	154/180
Cooling Air Capacity	m³/h	—	—	—	—	—	—	—
Max. Power Consumption	kw	2.8	4.5	6.8	8.4	17.3	25.6	42.5
Compressor Type	—	Hermetic scroll or reciprocating (All models)
Compressor Power	kw	2.25	3.75	3×2	3.75×2	7.5×2	7.5×3	9.37×4
Cooling Water Flow	m³/h	2.06/2.41	3.42/4	5.34/6.25	6.85/8	14.4/17	21.32/24.94	33.09/38.72
Cooling Water Port Size	—	G3/4	G1	G1-1/2	G1-1/2	G2	G2-1/2	G3
Chilled Water Flow	m³/h	1.65/1.93	2.74/3.2	4.72/5	5.47/6.4	14.44/16.9	21.32/24.94	33.09/38.72
Chilled Water Port Size	—	G3/4	G1	G1-1/2	G1-1/2	G2	G2-1/2	G3
Chilled Water Pump Power	kw	0.37	0.75	1.5	1.5	2.2	4	4
Chilled Water Pump Pressure	Kpa	210	300	170	190	190	190	210
Size (L×W×H)	mm	950×550×1050	—	1250×650×1350	—	1750×800×1600	—	2100×1000×1700
Weight	kg	120	150	210	290	440	690	1000

*Note: This parameter table represents the standard machine parameters. For non-standard parameters and functions, please communicate with us for further information.
