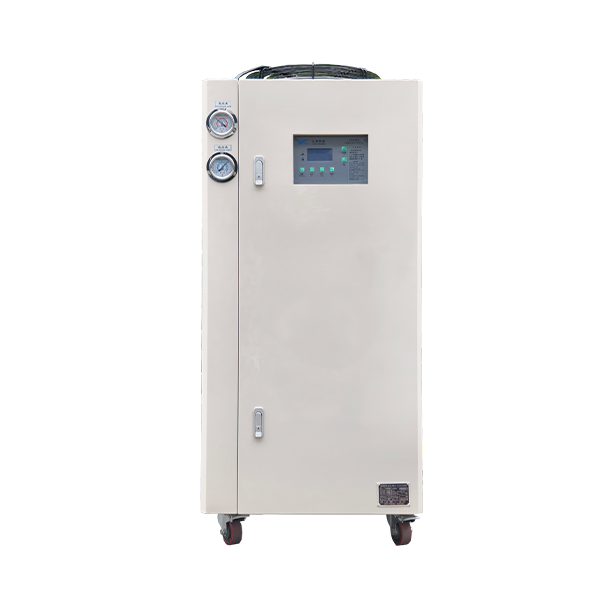

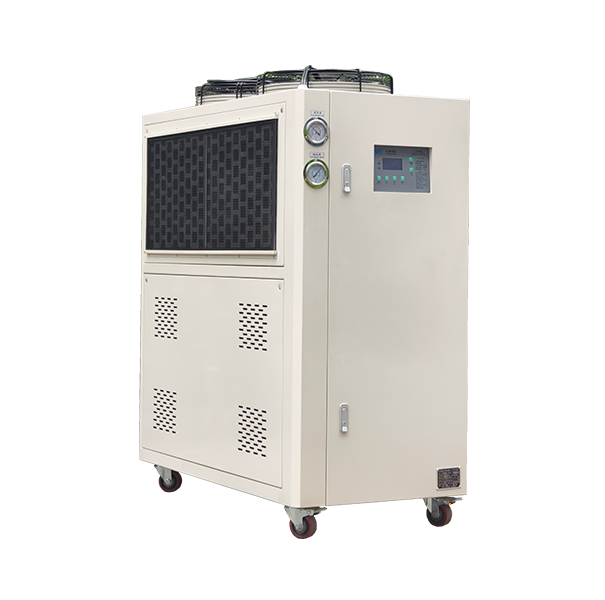

YC-10C Air-cooled Chiller

Precise temperature control | Efficient cooling | Intelligent control

Quantity

Estimated Delivery:Jan 28 - Feb 01
Free Shipping & Returns: On all orders over $75

Product description

Shipping & Return

Product Brief

Category	Specification
Product Model	YC-10C
Cooling Method	Water-cooled
Refrigerating Capacity	10KW
Power Supply	3-phase 380V 50Hz
Temperature Control Range	5~35°C
Temperature Control Accuracy	±0.5°C
Application Scope	Suitable for scenarios requiring high temperature precision, such as precision injection molding, chemical equipment, and laser equipment

Product Parameter List

Item	Unit	YC-03A	YC-05A	YC-08A	YC-10A	YC-20A	YC-30A	YC-50A
Temp Control Range	°C	Normal temperature; customizable below 0°C (All models)
Temp Control Accuracy	°C	PID ±1 (All models)
Power Supply	—	AC 3P 380V (All models)
Medium	—	R22 (All models)
Refrigerating Capacity	Kcal/h	7216/8442	11990/14028	18748/21925	24089/28184	50805/59442	74692/87741	116521/136330
Cooling Power	kw	8.4/9.8	14/16.3	21.8/25.5	28/32.8	59/69	87/102	135.5/158.5
Cooling Air Capacity	m³/h	3000	5000	8000	20000	30000	48000
Max. Power Consumption	kw	3.6	5.5	8.6	11	22.8	33.7	51
Compressor Type	—	Hermetic scroll or reciprocating (All models)
Compressor Power	kw	2.25	3.75	3×2	3.75×2	7.5×2	7.5×3	9.37×4
Cooling Water Flow	m³/h	1.68	2.81	4.19	5.64	12	17.55	27.3
Cooling Water Port Size	—	G3/4	G1	G1-1/2	G1-1/2	G2	G2-1/2	G3
Chilled Water Flow	m³/h	1.44	2.4	3.75	4.8	10	15	23
Chilled Water Port Size	—	G3/4	G1	G1-1/2	G1-1/2	G2	G2-1/2	G3
Chilled Water Pump Power	kw	0.37	0.75	1.5	1.5	2.2	4	4
Chilled Water Pump Pressure	Kpa	210	300	170	190	190	190	210
Size (L×W×H)	mm	1200×650×1550	—	1400×800×1650	—	2000×900×1950	2000×1200×1850	2400×1500×1950
Weight	kg	130	170	270	350	590	880	1280

*Note: This parameter table represents the standard machine parameters. For non-standard parameters and functions, please communicate with us for further information.
