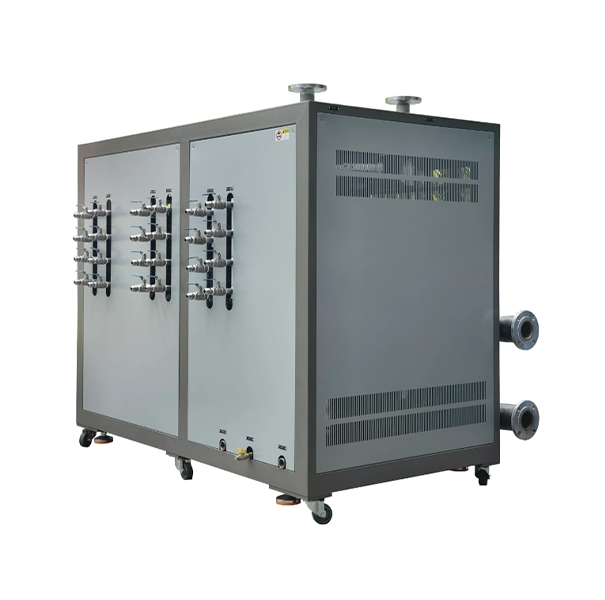

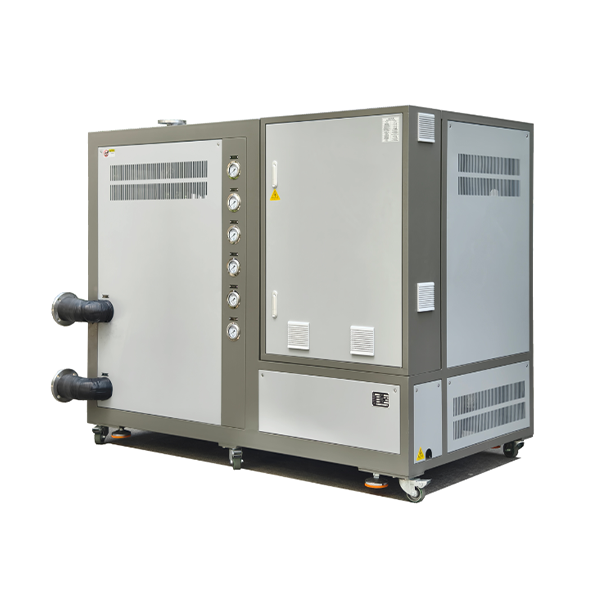

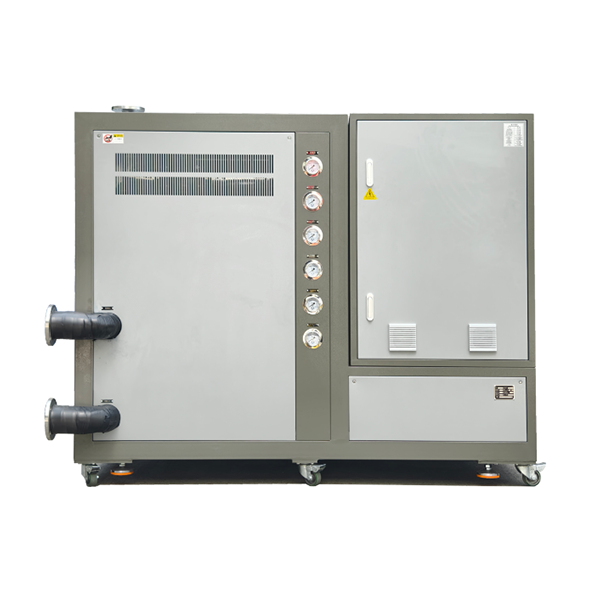

YFCHT-75-180℃ High Temperature Steam Water Temperature Machine
- Steam heating | High-temperature process | Stable and reliable
Generate QR code
-
Estimated Delivery:Jan 28 - Feb 01
-
Free Shipping & Returns: On all orders over $75
Product description
Shipping & Return
Product Brief
| Category | Specification |
|---|---|
| Temperature Range | Automatic temperature control from inlet water temperature +25°C to 120°C |
| Temperature Control Accuracy | PID ±1°C |
| Control Method | Contactor / Solid State Relay / Thyristor |
| Pipeline Material | 304 stainless steel, one-piece molded pipeline |
| Electrical Brand | Original genuine from Omron, Fuji, LS, Siemens, ABB |
| Safety Protection | Comprehensive safety protection and fault display |
| Maintenance Requirement | No professional personnel needed for maintenance and servicing |
| Customization Service | Supports special customization |
Industry application
The high-temperature steam water temperature machine is suitable for special processes that require higher temperature control, such as high-temperature composite material molding, special plastic injection molding, and high-temperature reaction vessel temperature control in high-end manufacturing fields.
Product Parameter List
| Item | Unit | YFCHT-75 |
|---|---|---|
| Temp Control Range | °C | Inlet water temp +25~180 |
| Temp Control Accuracy | °C | PID ±1 |
| Power Supply | --- | AC 3P 380V (3PHASE+EARTH) |
| Heat Transfer Medium | --- | Water |
| Heating Method | --- | Steam heating |
| Heating Capacity | kw | 75 |
| Pump Method | HP | 5.5 |
| Max Pump Flow | L/min | 300 |
| System Pressure | kg/cm² | 3.5 |
| Alarm Function | --- | Phase loss / Water shortage / Over temperature / Overload / Reverse rotation |
| Max Power Consumption | kw | 82.5 |
| Steam Interface | Inch | 1-1/2 |
| Circulation Water Pipe | Inch | 1-1/4 |
| Size (L×W×H) | mm | 1400×500×1260 |
| Weight | kg | 180 |
*Note: This parameter table represents the standard machine parameters. For non-standard parameters and functions, please communicate with us for further information.
