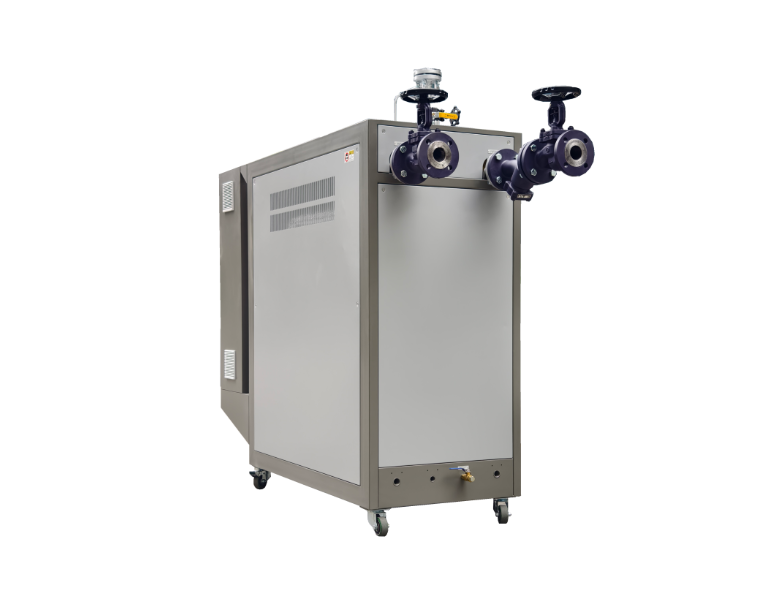

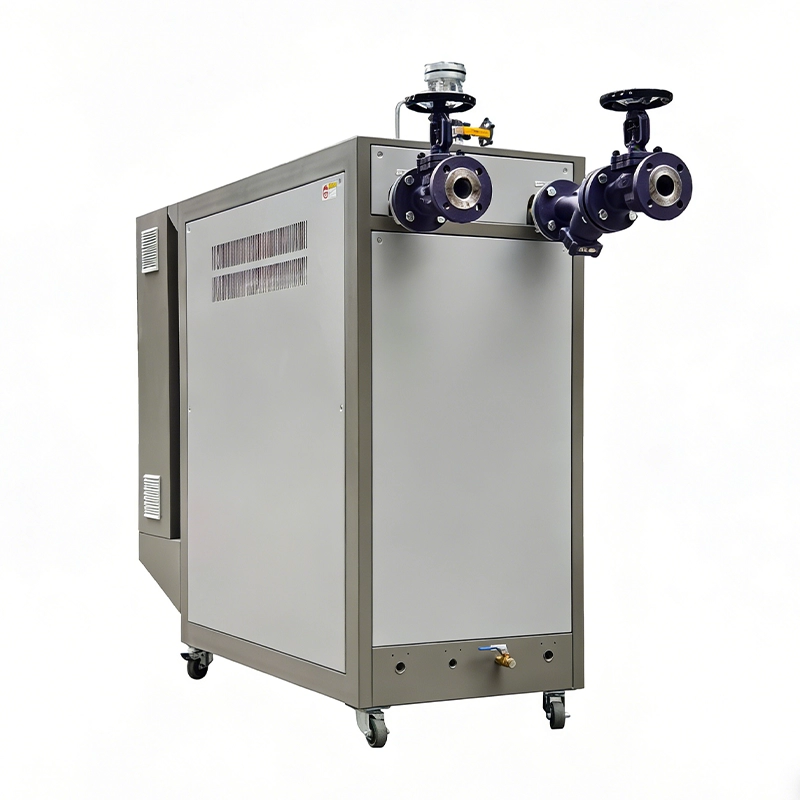

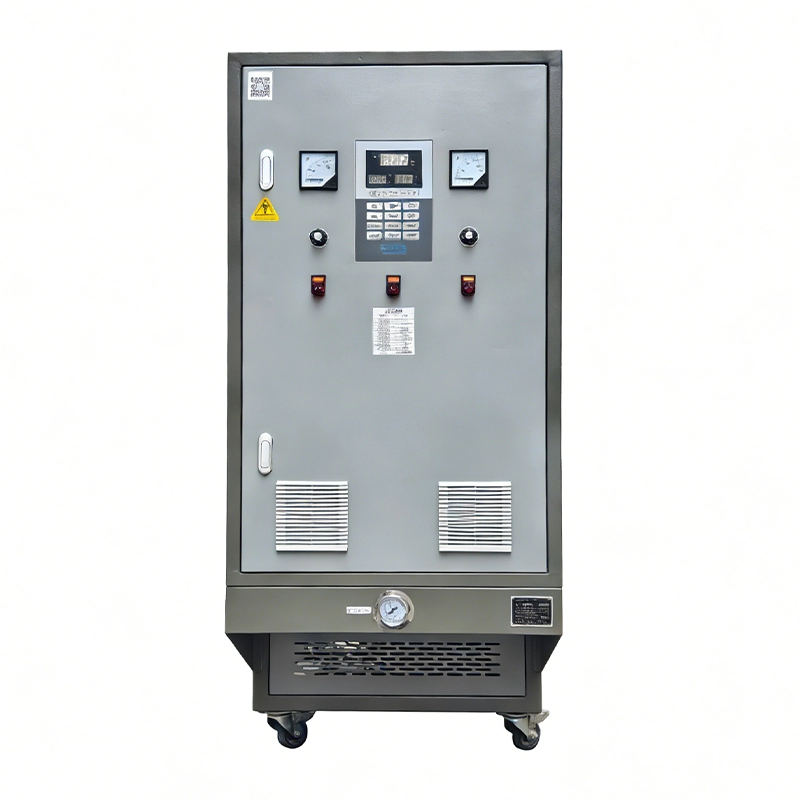

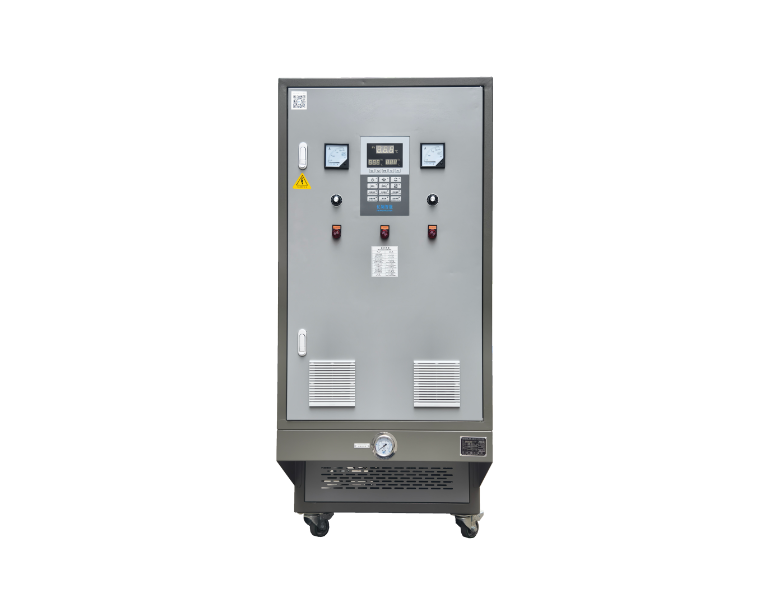

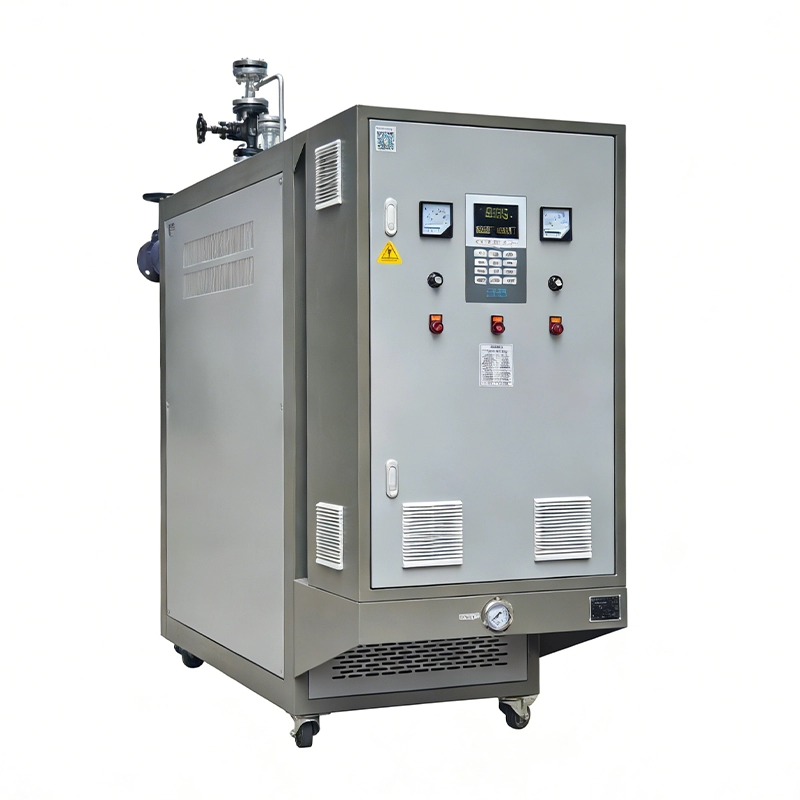

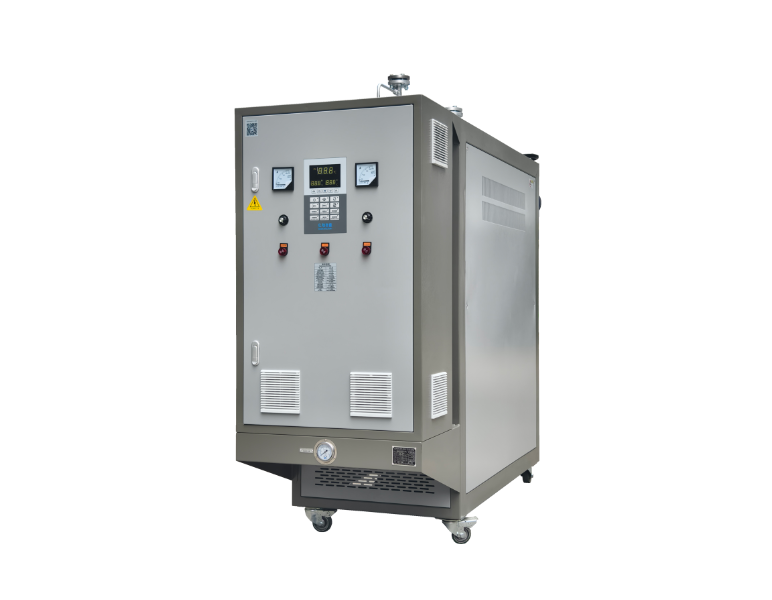

YOTB-150-300-300℃ High-power Oil Temperature Controller

YOTB-150-300-300℃ High-power Oil Temperature Controller

Intelligent control | Remote monitoring | Fault diagnosis

Quantity

Estimated Delivery:Jan 28 - Feb 01
Free Shipping & Returns: On all orders over $75

Product description

Shipping & Return

Product Brief

Category	Specification
Temperature Range	Automatic temperature control from inlet water temperature +25°C to 120°C
Temperature Control Accuracy	PID ±1°C
Control Method	Contactor / Solid State Relay / Thyristor
Pipeline Material	304 stainless steel, one-piece molded pipeline
Electrical Brand	Original genuine from Omron, Fuji, LS, Siemens, ABB
Safety Protection	Comprehensive safety protection and fault display
Maintenance Requirement	No professional personnel needed for maintenance and servicing
Customization Service	Supports special customization

Product Parameter List

Item	Unit	YOTB-20	YOTB-30	YOTB-40	YOTB-50
Temp Control Range	°C	---	---	---	---
		Inlet water temp +45~300 (All models)
Temp Control Accuracy	°C	---	---	---	---
		PID ±1 (All models)
Power Supply	---	---	---	---	---
		AC 3P 380V (3PHASE+EARTH) (All models)
Heat Transfer Medium	---	---	---	---	---
		Thermal oil (All models)
Oil Reserve	Liter	24	28	---	55
Heating Capacity	kw	18/24	30/30	36/50	44/60
Pump Method	HP	1.5	2.2	3.0	4.0
Max Pump Flow	L/min	22	16	12.5	16
System Pressure	kg/cm²	3.5	2.0	3.0	3.2
Alarm Function	---	---	---	---	---
		Phase loss / Oil shortage / Over temperature / Overload / Reverse rotation (All models)
Max Power Consumption	kw	25.5	38.5	63	64
Cooling Water Pipe Size	Inch	---	---	---	---
		1/2 (YOTB-20/30) / 11/2 (YOTB-40/50)
Circulating Media Pipe Size	Inch	---	---	---	---
		3/4 (YOTB-20/30) / 1 (YOTB-40/50)
Size (L×W×H)	cm	1150×420×1000	1250×500×1150	---	1570×630×1200
Weight	kg	340	390	480	520

Item	Unit	YOTB-75	YOTB-100	YOTB-150
Temp Control Range	°C	---	---	---
		Inlet water temp +45~300 (All models)
Temp Control Accuracy	°C	---	---	---
		PID ±1 (All models)
Power Supply	---	---	---	---
		AC 3P 380V (3PHASE+EARTH) (All models)
Heat Transfer Medium	---	---	---	---
		Thermal oil (All models)
Oil Reserve	Liter	60	80	100
Heating Capacity	kw	60/75	80/100	100/150
Pump Method	HP	5.5(6.0)	7.5(8.0)	11(12.5)
Max Pump Flow	L/min	16.5	12.6	10.0
System Pressure	kg/cm²	---	5.0	6.0
Alarm Function	---	---	---	---
		Phase loss / Oil shortage / Over temperature / Overload / Reverse rotation (All models)
Max Power Consumption	kw	92.6	112	162
Cooling Water Pipe Size	Inch	---	---	---
		2×2 (All models)
Circulating Media Pipe Size	Inch	11/2	2	2.5
Size (L×W×H)	cm	1570×600×1400	1670×600×1400	1870×700×1400
Weight	kg	580	660	750

*Note: This parameter table represents the standard machine parameters. For non-standard parameters and functions, please communicate with us for further information.
