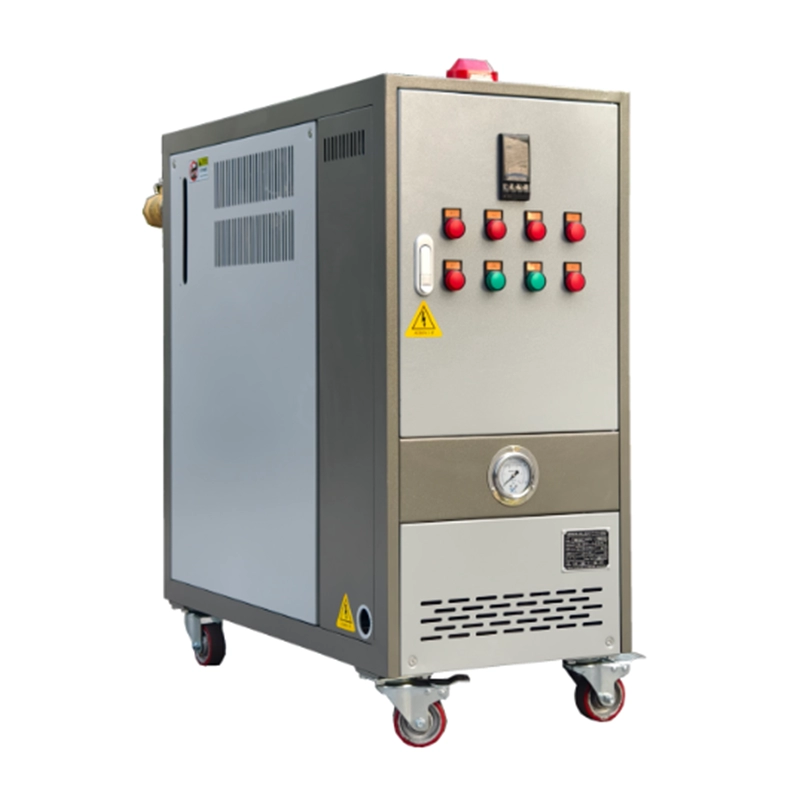

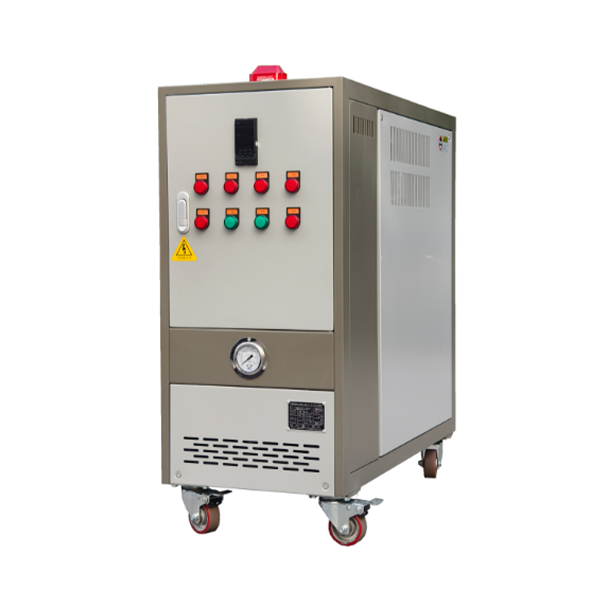

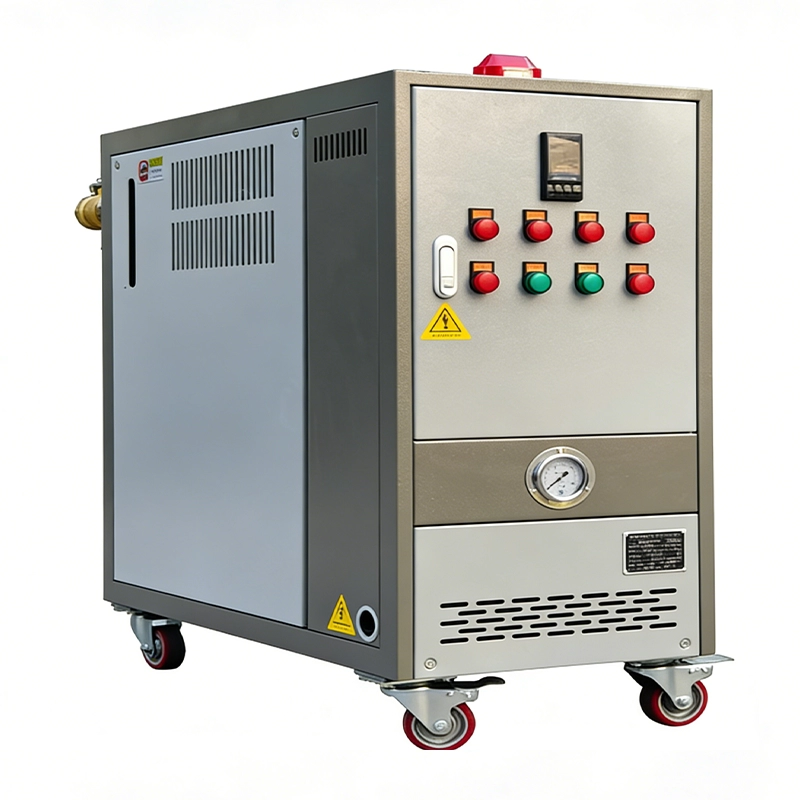

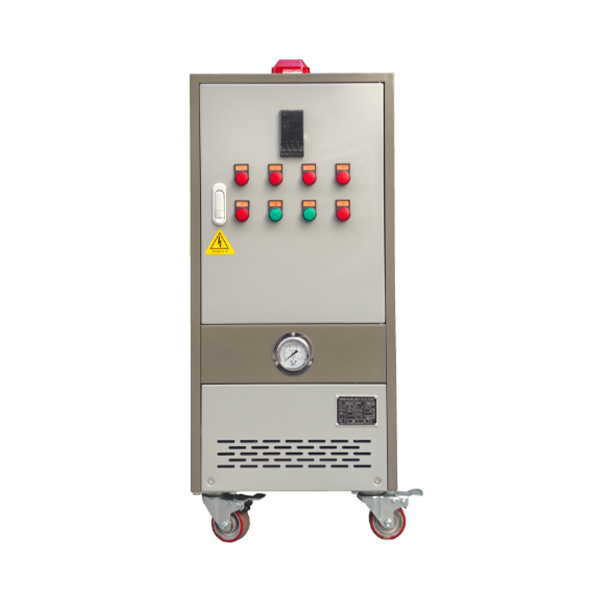

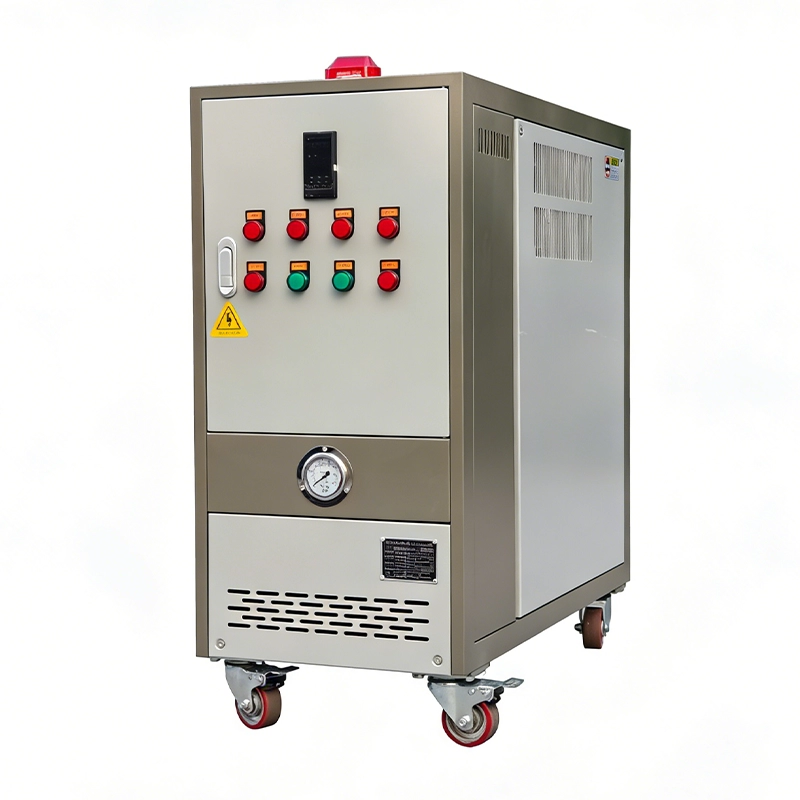

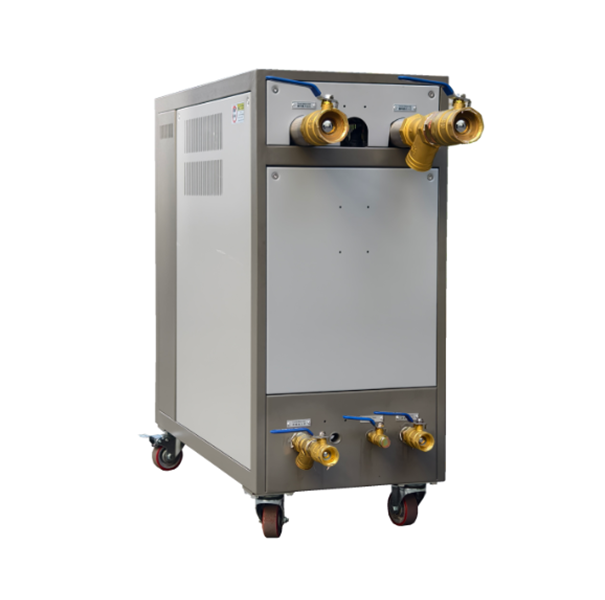

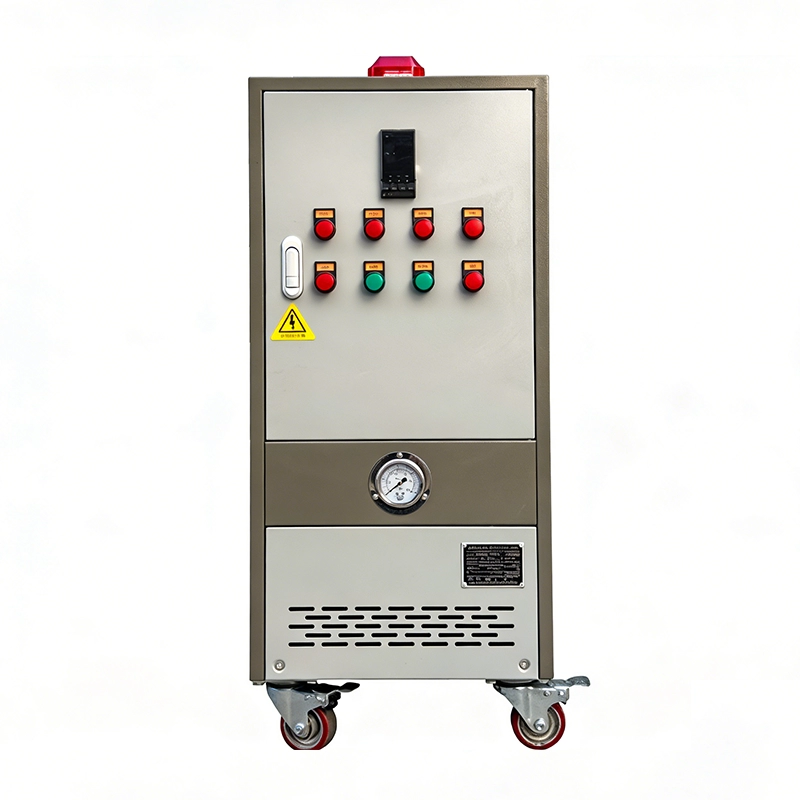

YWM-10-12T-120℃ Water Temperature Machine

Enhanced design | Temperature stability | Rapid response

get a quote

If you have any questions about our product range or services, please fill out the contact form below and we will be in touch promptly

* Please enter message information

Worldwide delivery capable

Product Brief

Category	Description
Temperature Range	Automatic temperature control from inlet water temp +25°C to 120°C
Temperature Control Accuracy	PID ±1°C
Control Mode	Contactor / solid-state relay / thyristor
Piping Material	304 stainless steel, integrated piping design
Electrical Component Brands	Original genuine parts from Omron, Fuji, LS, Siemens, ABB
Safety Protection	Comprehensive safety protection with fault display
Maintenance Requirements	No professional personnel needed for repair and maintenance
Customization Service	Special customization available

Product Parameter List

Item	Unit	YWH-10	YWH-20	YWH-30	YWT-10	YWT-20	YWT-30
Control Range	°C	Inlet water temp +45~120°C	Inlet water temp +45~180°C
Temp.control accuracy	°C	PID ±1°C (All models)
Power supply	—	AC 3P 380V 50Hz±5% (5M) (All models)
Heat transfer medium	—	Water (All models)
Cooling method	—	Indirect cooling (All models)
Heating capacity	kw	9	12	24	9	12	24
Pump method	HP	1	2	3	1	2	3
Max pump flow	L/min	95	153	235	95	153	235
System pressure	kg/cm²	6	6	6	12	12	12
Alarm function	—	Phase loss / water shortage / over temperature / overload / reverse rotation (All models)
Power supply	kw	10	14	26	10	14	26
Cooling water pipe	Inch	1/2	1/2	1/2	1/2	1/2	1/2
Circulation water pipe	Inch	3/4×4	3/4×4	3/4×4	3/4×4	3/4×4	3/4×4
Size (L×W×H)	Cm	700×360×815	700×360×815	1000×420×1100	700×360×845	700×360×845	1000×420×1100
Weight	kg	75	85	95	75	85	95

*Note: This parameter table represents the standard machine parameters. For non-standard parameters and functions, please communicate with us for further information.
