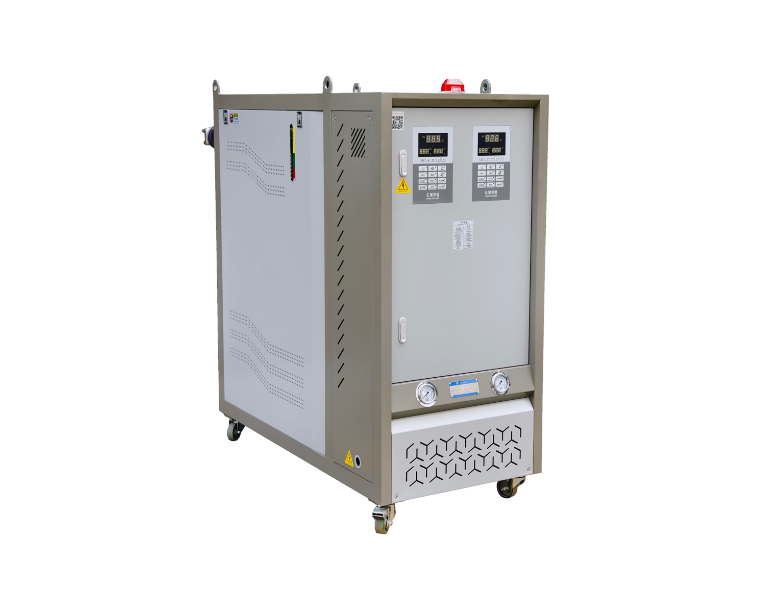

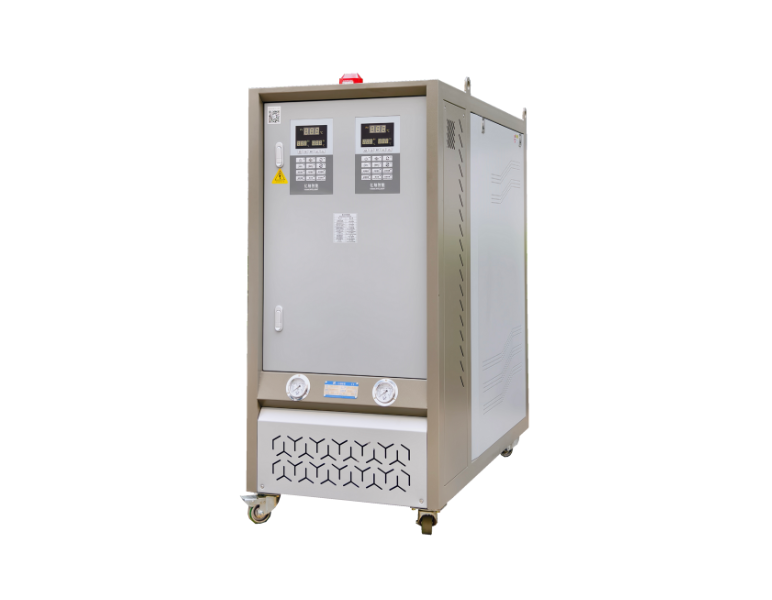

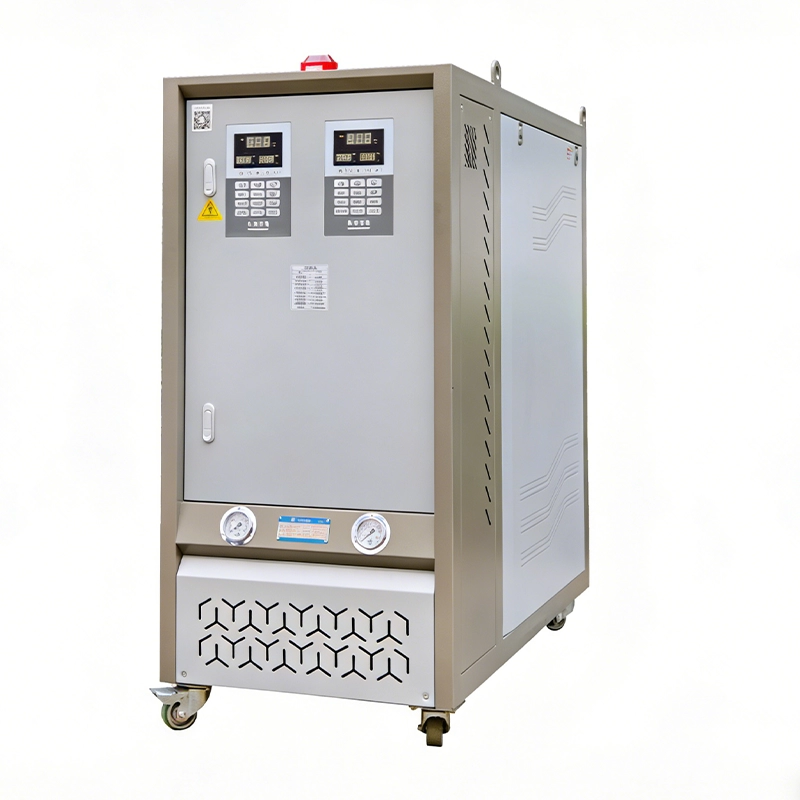

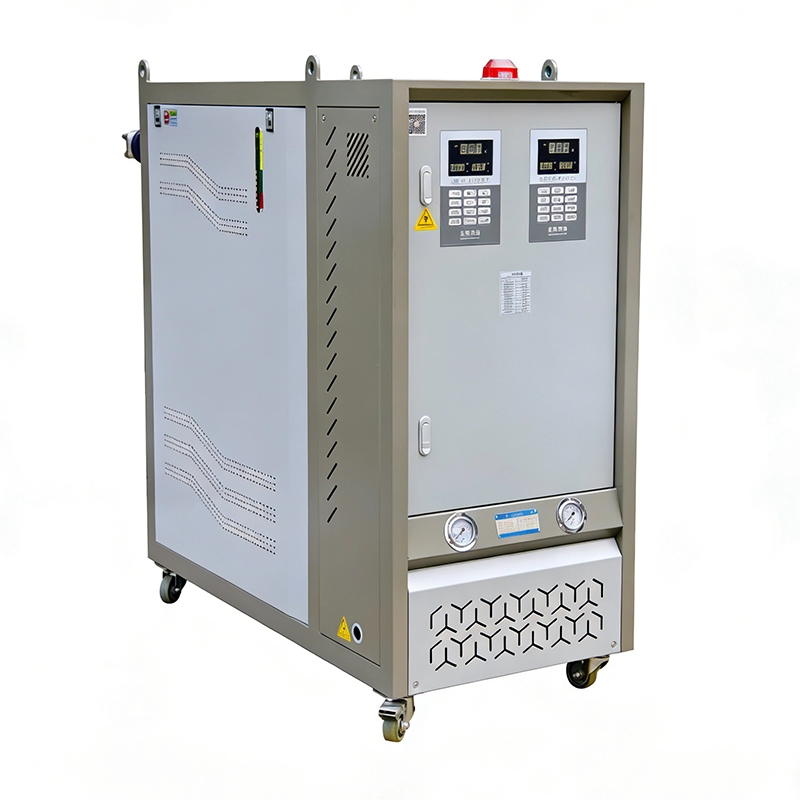

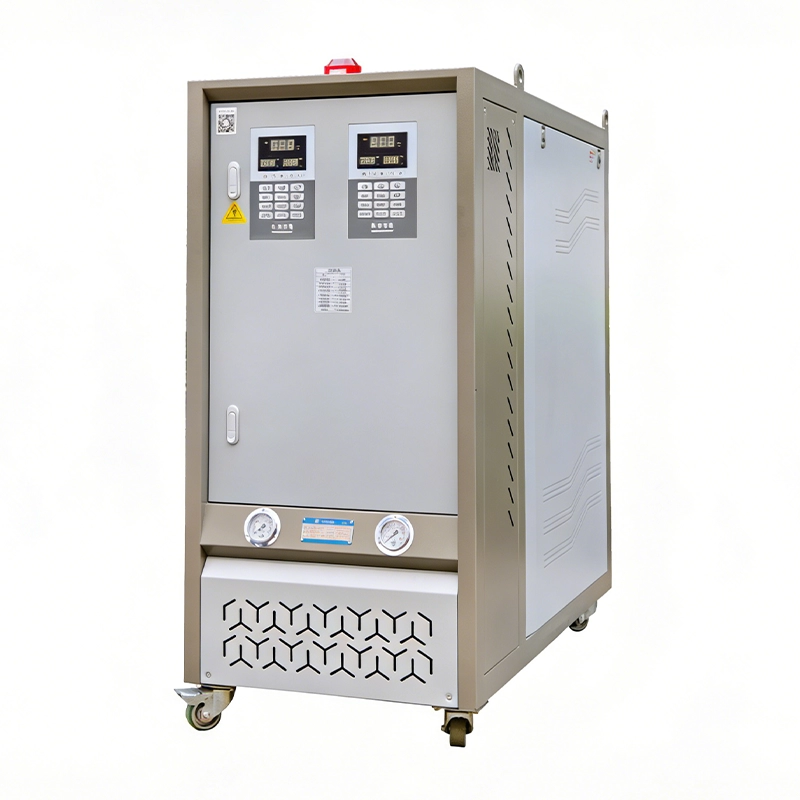

YODD-1130S-320℃ Dual-loop Oil Temperature Controller

  • Dual-loop design | High-temperature stability | Precise temperature control
Share
  • Estimated Delivery:Jan 28 - Feb 01

  • Free Shipping & Returns: On all orders over $75

Product description
Shipping & Return

Product Brief

CategorySpecification
Temperature RangeInlet water temperature +45~320°C
Temperature Control Accuracy±1°C
Heating MediumThermal oil
Control MethodPID intelligent control
Safety ProtectionOver-temperature protection, overload protection, oil shortage protection, phase sequence protection


Product Parameter List

ItemUnitYODD-1130YODD-2840
Temp Control Range°CInlet water temp +45~320 (Both models)
Temp Control Accuracy°CPID ±1 (Both models)
Power Supply---AC 3P 380V (3PHASE+EARTH) (Both models)
Heat Transfer Medium---Thermal oil (Both models)
Cooling Method---Indirect cooling (Both models)
Cooling Capacitykw30+3040+40
Expansion Tank CapacityL4250
Heating Capacitykw30+3040+40
Pump Powerkw1.1+1.12.8+2.8
Pump FlowL/min40+4060+60
Pump Pressurekg/cm²2.4+2.43.5+3.5
Max. Power Consumptionkw52104
Special Function---Pump reverse oil return (Both models)
Alarm Function---Phase loss / Oil shortage / Over temperature / Overload / Heating abnormality (Both models)
Cooling Water Pipe SizeInch3/4 (Both models)
Circulating Media Pipe SizeInch3/4×21×2
Size (L×W×H)mm1400×675×1450 (Both models)


*Note: This parameter table represents the standard machine parameters. For non-standard parameters and functions, please communicate with us for further information.
