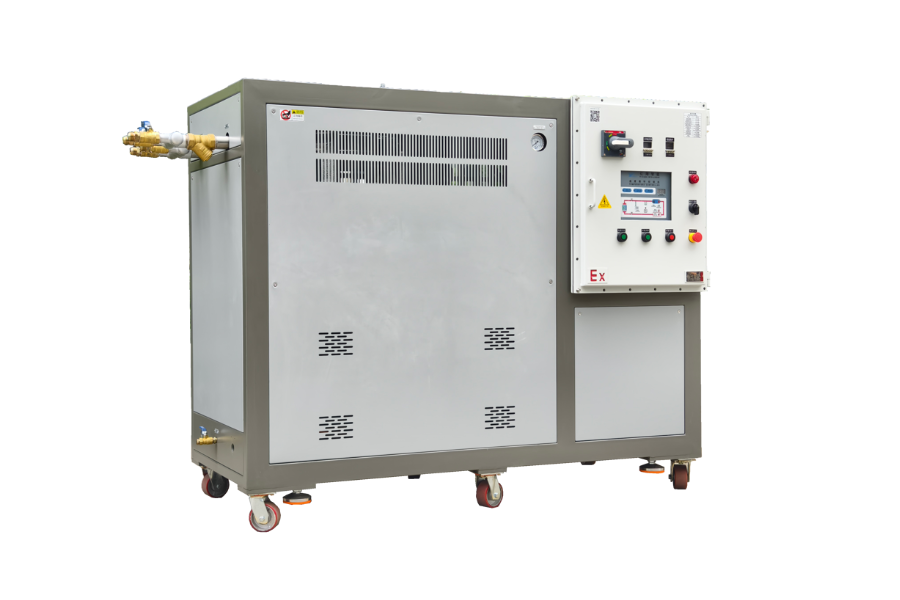

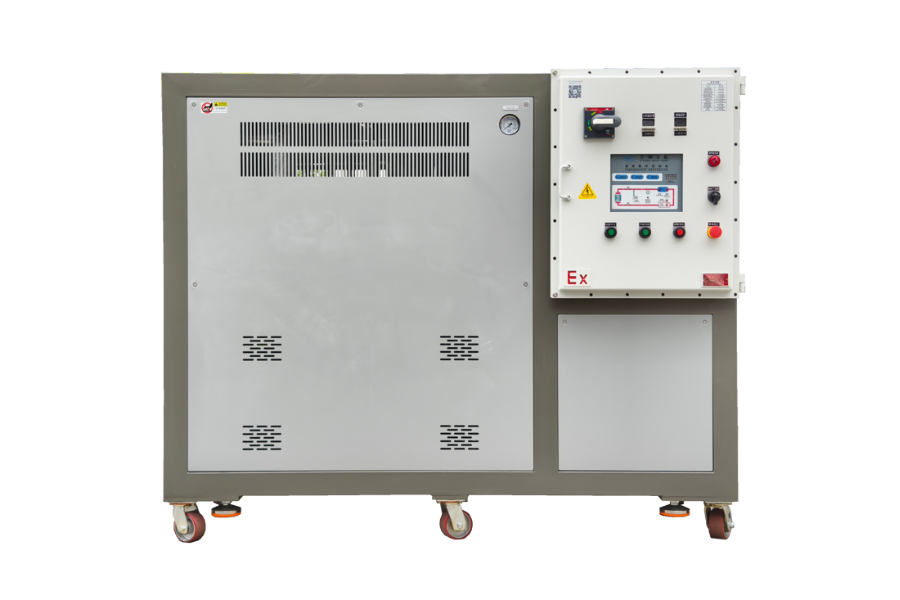

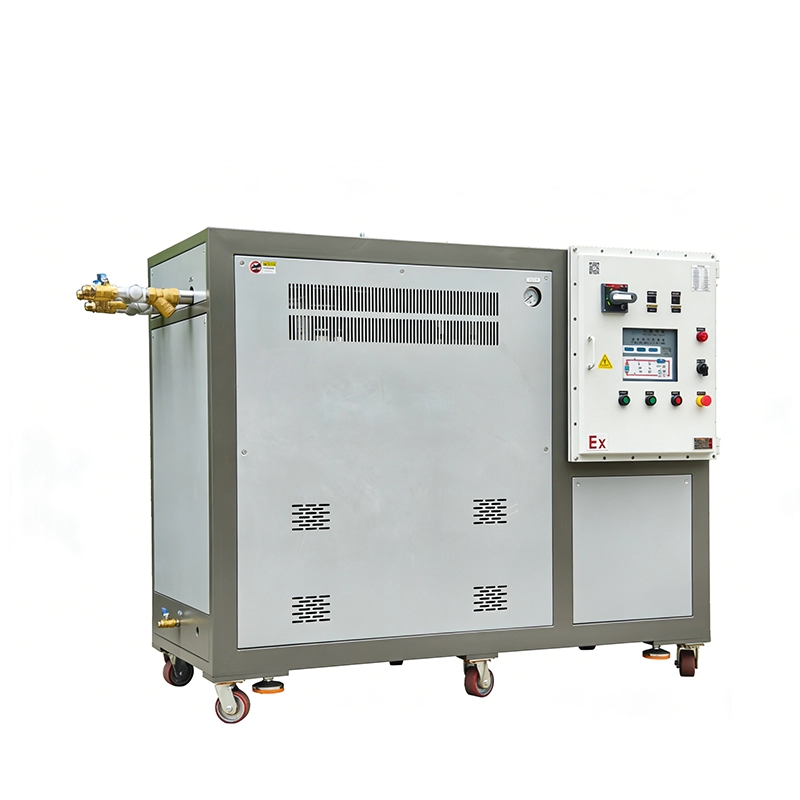

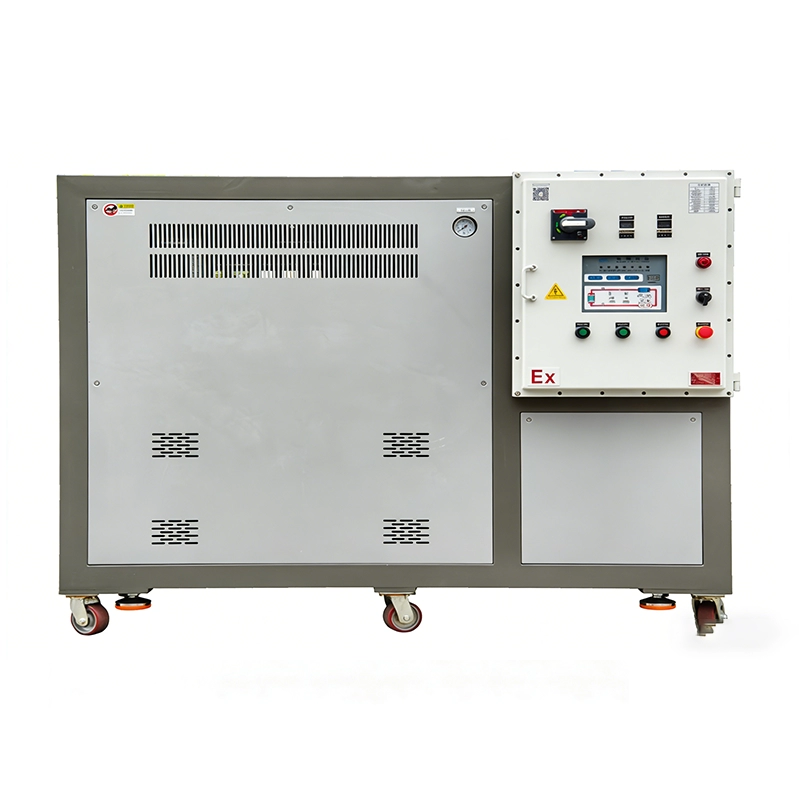

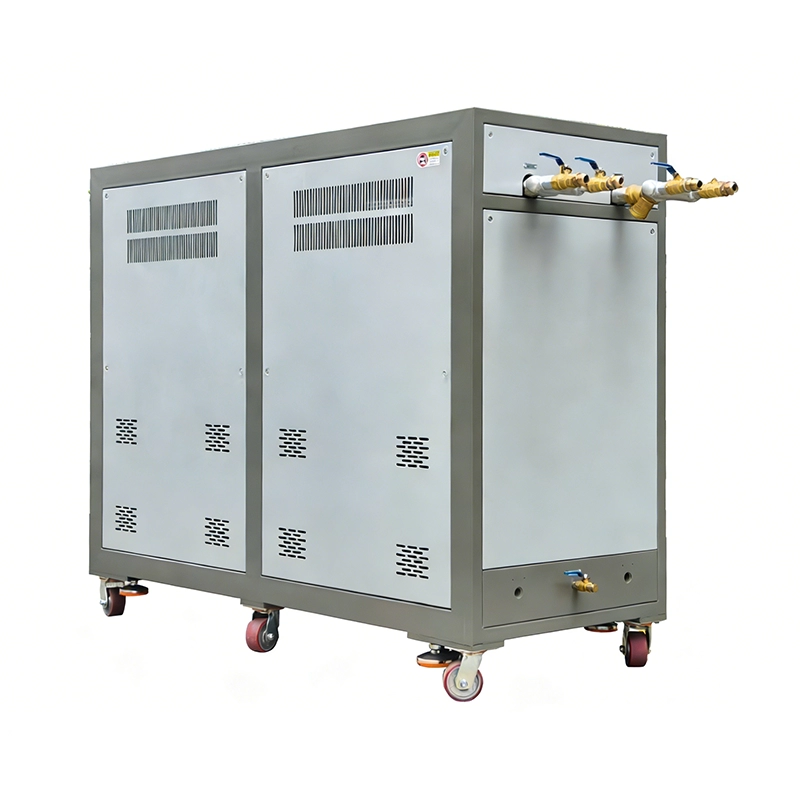

YOTB-50FB-36-400℃ Explosion-proof Modulating Temperature Machine
- Explosion-proof design | Safe and reliable | Intelligent control
Generate QR code
-
Worldwide delivery capable
Product description
Product Brief
| Category | Description |
|---|---|
| Model Features | Displays oil outlet and return temperatures; microcomputer touch-screen operation for ease of use. Explosion-proof electrical control cabinet extends service life. Special pipeline system design prevents thermal oil oxidation for long lifespan. Electrical components are original genuine parts from Omron, Fuji, LS, Siemens, ABB. Comprehensive safety protection with fault display; no professional personnel required for maintenance. |
| Application Scope | Film stretching production lines, hot press molding mold temperature control, high-temperature ejection mold temperature control, aluminum/magnesium alloy die casting temperature control, double-stretch film production lines, heating/drying roller temperature control, laminating machine temperature control, reactor temperature control, rubber molding machine temperature control. |
| Optional Functions | Explosion-proof device, PLC control, electrical cabinet IP protection, RS-485 communication, oil return blowing, timer on/off, remote on/off. |
Product Parameter List
| Item | Unit | YOTB-20FB | YOTB-30FB | YOTB-40FB | YOTB-50FB | YOTB-75FB | YOTB-100FB | YOTB-150FB |
|---|---|---|---|---|---|---|---|---|
| Temp Control Range | °C | Inlet water temp +45~300 (All models) | ||||||
| Temp Control Accuracy | °C | PID ±1 (All models) | ||||||
| Power Supply | — | AC 3P 380V (All models) | ||||||
| Heat Transfer Medium | — | Thermal oil (All models) | ||||||
| Cooling Method | — | Indirect cooling (All models) | ||||||
| Expansion Tank Capacity | L | 100 | — | — | — | 150 | — | — |
| Heating Capacity | kw | 18 | 24 | 36 | 50 | 72 | 100 | 150 |
| Pump Power | kw | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 |
| Max Pump Flow | L/min | 100 | 160 | 208 | 260 | 208 | 400 | 750 |
| System Pressure | kg/cm² | 2.8 | 3 | — | 5 | 4 | — | 5 |
| Alarm Function | — | Phase loss / Oil shortage / Over temperature / Overload / Heating abnormality (All models) | ||||||
| Max. Power Consumption | kw | 19.5 | 26.2 | 39 | 54 | 77.5 | 107.5 | 161 |
| Circulating Media Pipe | inch | 1 | 1-1/4 | 1-1/2 | 2 | 2.5 | ||
| Size (L×W×H) | mm | 1900×800×1500 | — | 2000×1000×1800 | — | 2000×1000×1950 |
*Note: This parameter table represents the standard machine parameters. For non-standard parameters and functions, please communicate with us for further information.
