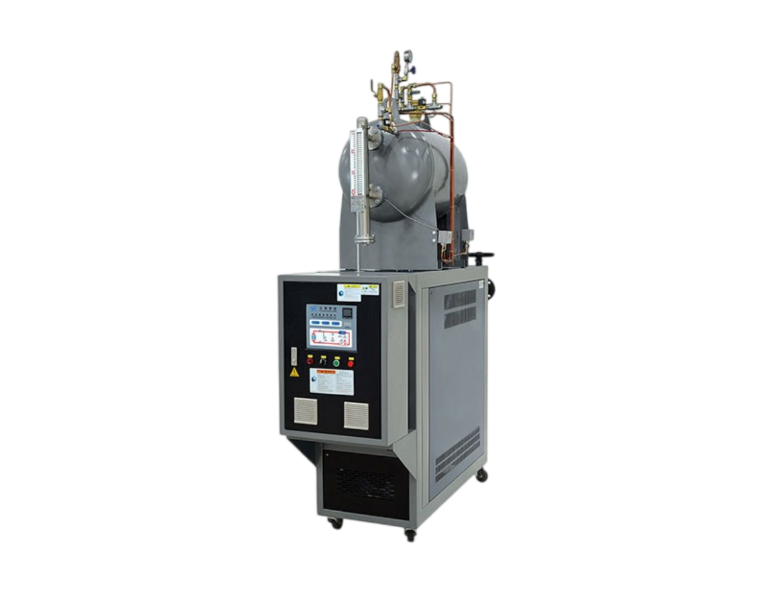

YOTS-20-50-400℃ High Temperature Oil Temperature Machine
- High temperature stability | High efficiency and energy saving | Precise temperature control
Generate QR code
-
Estimated Delivery:Jan 28 - Feb 01
-
Free Shipping & Returns: On all orders over $75
Product description
Shipping & Return
Product Brief
| Category | Specification |
|---|---|
| Temperature Range | Automatic temperature control from inlet water temperature +25°C to 120°C |
| Temperature Control Accuracy | PID ±1°C |
| Control Method | Contactor / Solid State Relay / Thyristor |
| Pipeline Material | 304 stainless steel, one-piece molded pipeline |
| Electrical Brand | Original genuine from Omron, Fuji, LS, Siemens, ABB |
| Safety Protection | Comprehensive safety protection and fault display |
| Maintenance Requirement | No professional personnel needed for maintenance and servicing |
| Customization Service | Supports special customization |
Industry application
The YOTS-20-50-400℃ high-temperature oil temperature machine is widely used in the temperature control of the blown film production line, the temperature control of hot pressing molds, the temperature control of high-temperature injection molding molds, the temperature control of aluminum/magnesium alloy die-casting, the temperature control of double-stage stretching film production line, heating/drying, roller temperature control, kneader temperature control, reactor temperature control, and rubber molding machine temperature control, etc. It adopts an indirect cooling method and has precise temperature control capabilities, which can meet various high-temperature process requirements.
Product Parameter List
| Item | Unit | YOTS-20 | YOTS-30 | YOTS-40 | YOTS-50 | YOTS-75 | YOTS-100 | YOTS-150 |
|---|---|---|---|---|---|---|---|---|
| Temp Control Range | °C | Inlet water temp +45~400 (All models) | ||||||
| Temp Control Accuracy | °C | PID ±1 (All models) | ||||||
| Power Supply | — | AC 3P 380V (All models) | ||||||
| Heat Transfer Medium | — | Thermal oil (All models) | ||||||
| Cooling Method | — | Indirect cooling (All models) | ||||||
| Expansion Tank Capacity | L | 24 | 28 | 36 | 55 | 100 | 150 | 250 |
| Heating Capacity | kw | 18/24 | 30/36 | 36/50 | 40/60 | 60/75 | 80/100 | 100/150 |
| Pump Power | kw | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 |
| Max Pump Flow | L/min | 100 | 160 | 208 | 260 | 208/300 | 400/500 | 750/830 |
| System Pressure | kg/cm² | 2.2 | 2.8 | 3 | 3.2 | 5/4 | 5/4.8 | 4/8 |
| Alarm Function | — | Phase loss / Oil shortage / Over temperature / Overload / Heating abnormality (All models) | ||||||
| Max. Power Consumption | kw | 25.5 | 38.5 | 53 | 64 | 82.5 | 132 | 162 |
| Cooling Water Pipe | inch | 3/4 | 1 | 1-1/4 | 1-1/2 | - | ||
| Circulating Media Pipe | inch | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2.5 | |
| Size (L×W×H) | mm | 1200×420×1100 | 1400×500×1260 | 1720×650×1360 | 1750×700×1610 |
*Note: This parameter table represents the standard machine parameters. For non-standard parameters and functions, please communicate with us for further information.
