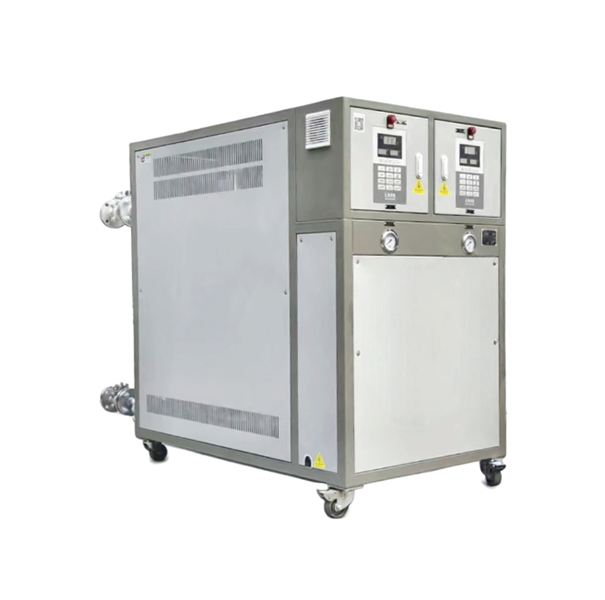

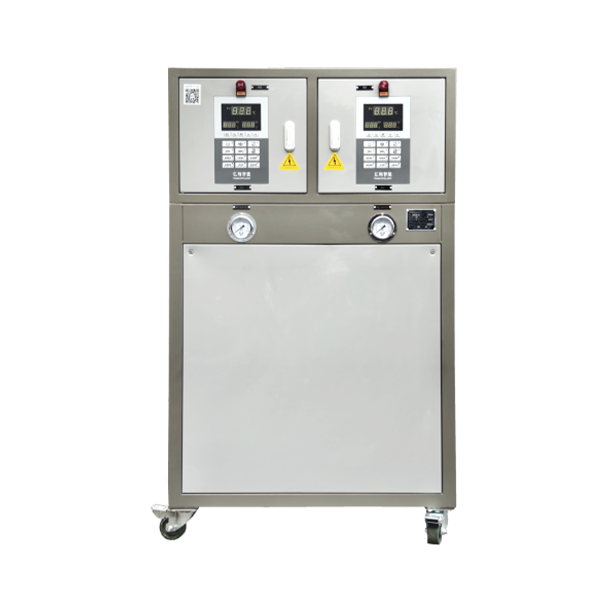

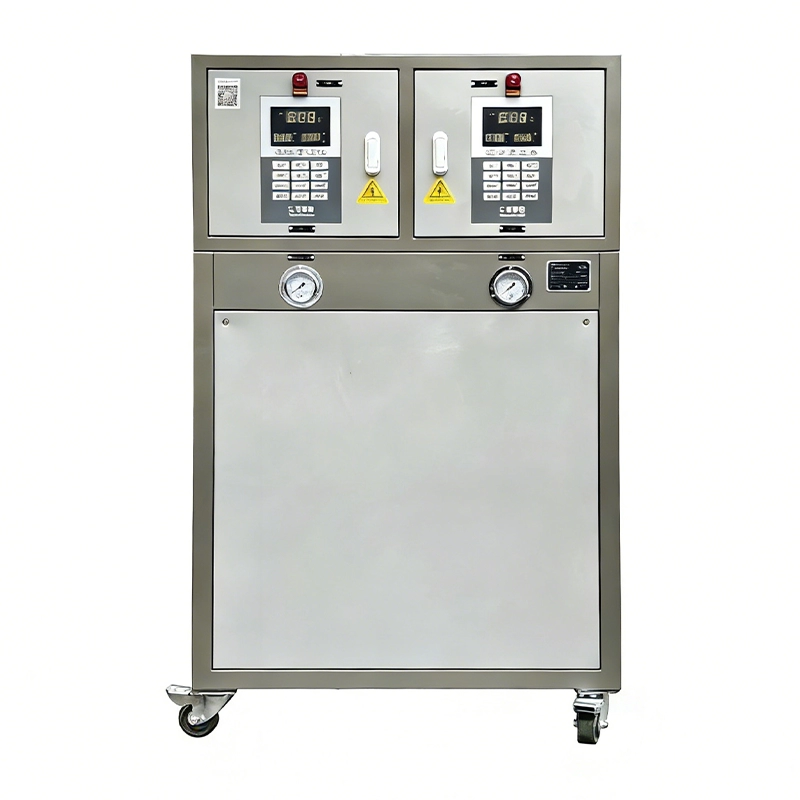

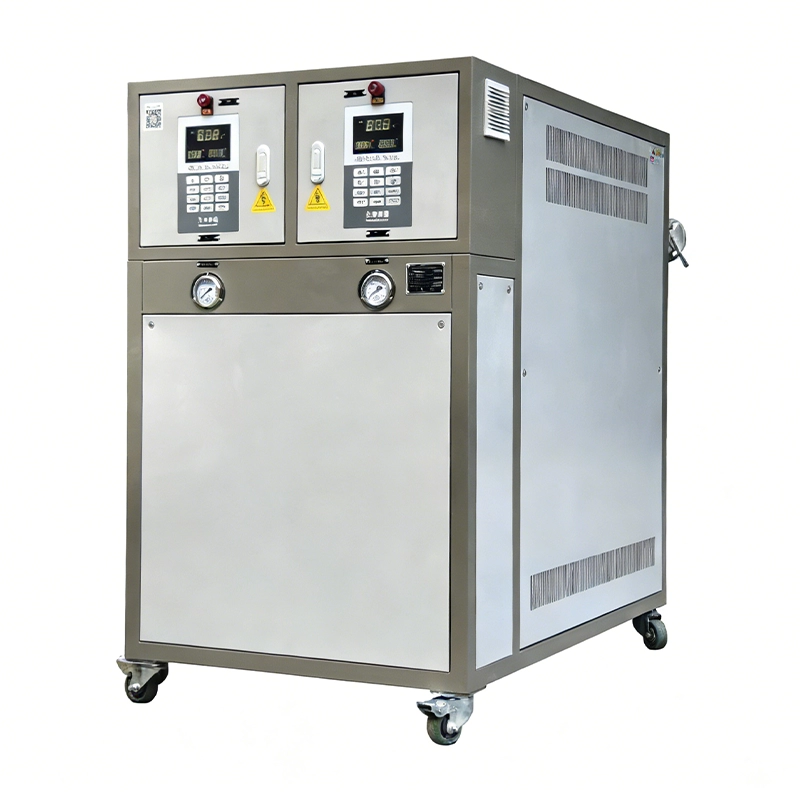

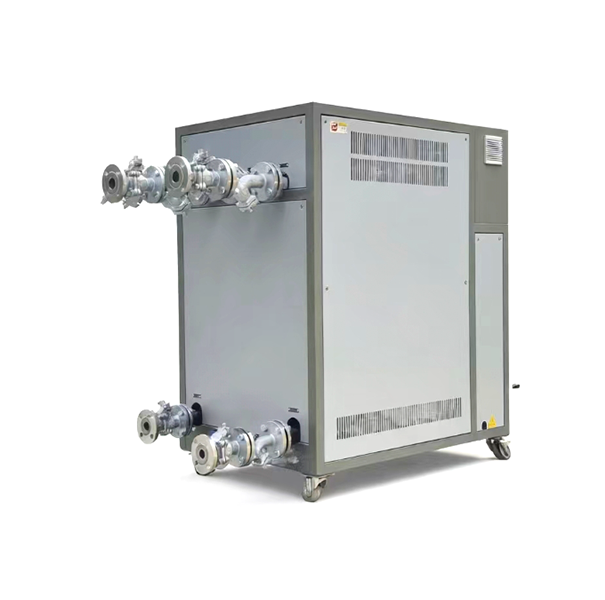

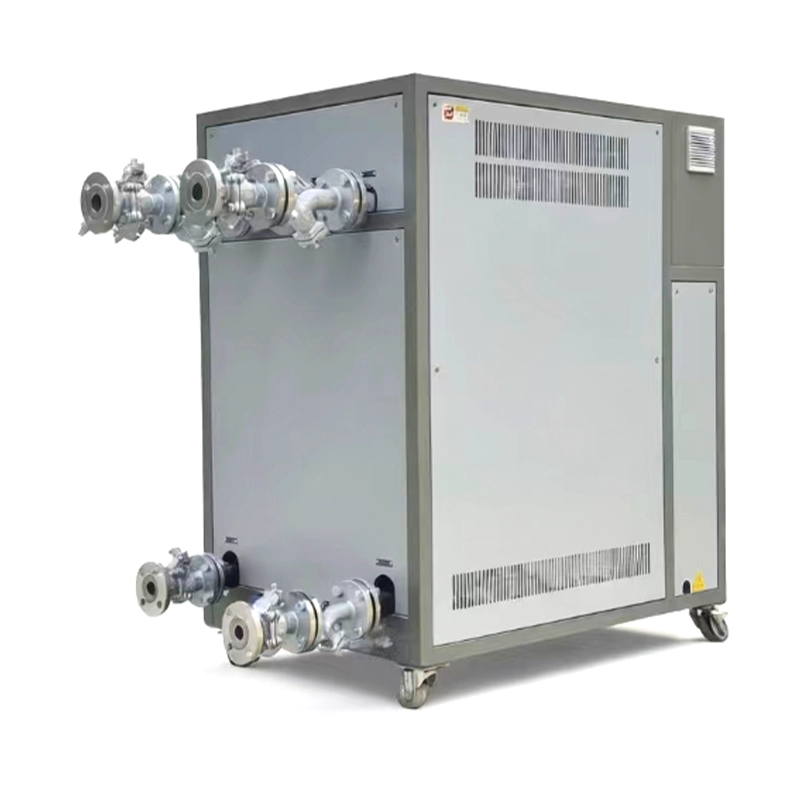

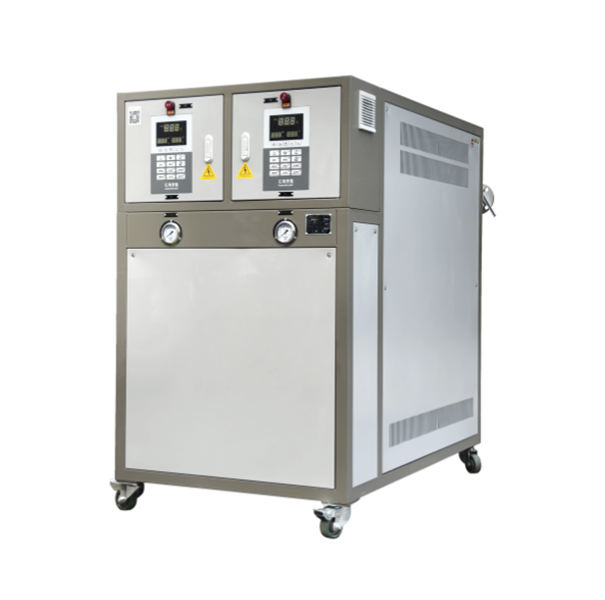

YWMJD-40CL-18T-120℃ Dual-Unit Integrated Water Temperature Machine
- Dual-machine integration | Parallel design | Efficient and reliable
Generate QR code
-
Worldwide delivery capable
Product description
Product Brief
| Category | Description |
|---|---|
| Temperature Range | Automatic temperature control from inlet water temp +25°C to 120°C |
| Temperature Control Accuracy | PID ±1°C |
| Control Mode | Contactor / solid-state relay / thyristor |
| Piping Material | 304 stainless steel, integrated piping design |
| Electrical Component Brands | Original genuine parts from Omron, Fuji, LS, Siemens, ABB |
| Safety Protection | Comprehensive safety protection with fault display |
| Maintenance Requirements | No professional personnel needed for repair and maintenance |
| Customization Service | Special customization available |
Industry application
The dual-machine integrated water temperature machine is specially designed for multi-mold production scenarios. It can provide independent temperature control for two molds simultaneously, and is suitable for industries such as automotive parts, home appliance shells, and precision electronics that require high-efficiency production.
Product Parameter List
| Item | Unit | YWMJD-40CL-18T |
|---|---|---|
| Temp Control Range | °C | Inlet water temp +25~120 |
| Temp Control Accuracy | °C | PID ±1 |
| Power Supply | — | AC 3P 380V (3PHASE+eARTH) |
| Heat Transfer Medium | — | Water |
| Cooling Method | — | Direct cooling |
| Heating Capacity | kw | 18×2 |
| Pump Method | HP | 1+1 |
| Max Pump Flow | L/min | 165+165 |
| System Pressure | kg/cm² | 2+2 |
| Alarm Function | — | Phase loss / water shortage / over temperature / overload / reverse rotation |
| Max Power Consumption | kw | 19.5 |
| Cooling Water Pipe | Inch | 1/2 |
| Circulation Water Pipe | Inch | 3/4×4×2 |
| Size (L×W×H) | mm | 1000×550×910 |
| Weight | kg | 150 |
*Note: This parameter table represents the standard machine parameters. For non-standard parameters and functions, please communicate with us for further information.
